Grounding Lugs

For more details call:

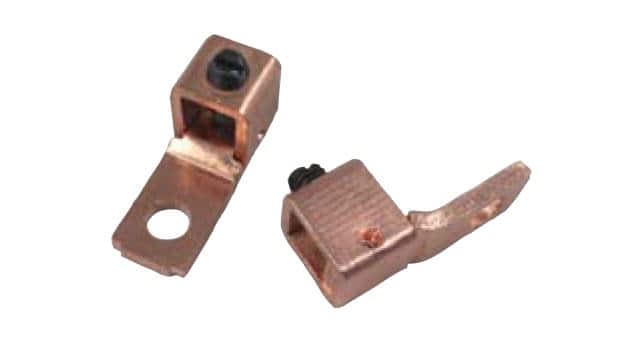

HESCO/RLS copper grounding lugs (PN: 5310) are designed to provide minimum contact resistance and offer protection against corrosion.

Download Specifications Sheet (PDF}


Lug Material Copper
Screw Mount Size #8, #10, M4, M5, or 1
Mounting Screw Torque 20/2.3
Wire Size (AWG) 22-6
Wire Clamp Screw Torque 10-15/1.3-1.7


Disconnect all power before installing any grounding lugs. Closely inspect all completed connections prior to turning power back on.

Ensure all torque values do not exceed the specifications listed on this technical sheet.
