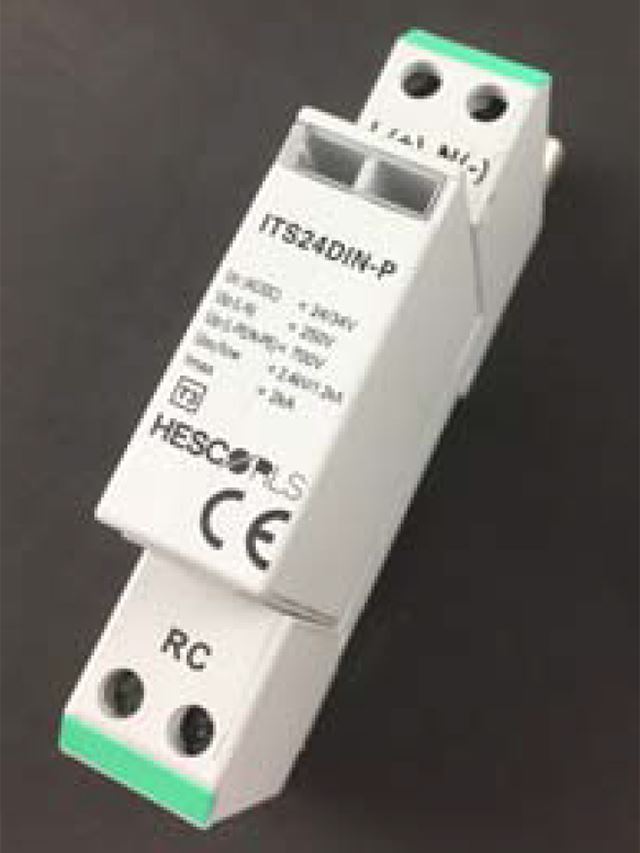

ITS24DIN

ITS24DIN
Click for larger view

For more details call:
1-800-547-4868

Description

The ITS24DIN is your best option for a compact, Din Rail mounted surge protection device. The unit offers LN, L-G, and N-G protection.

The unit includes remote contacts to monitor the status of the ITS24DIN. This product also incorporates a modular design. The protective module is easily replaced if the green operating lamp is extinguished.

Download Specifications Sheet (PDF}

Specifications

Operating Voltage 24 VAC
Maximum Continuous Operating Voltage 34 VAC
Voltage Protection Level L-N >2500V
L-G/N-G >700
Maximum Discharge Current (per mode) 2kA
Response Time <25ns
Nominal Frequency 50-60Hz
Temperature Range -40°C to +85°C
Operating Temperature -40°C to +85°C
Mounting Snaps to 35mm Rail
Weight (in) Total 0.20lbs
Replacement Module 0.07lbs
Limited Warranty 5 Years

Features

  • Modular Design
  • 35mm Din Rail Mount
  • High Energy MOV and GDT Design
  • Thermally Protected MOVs
  • Operating Status Indication
  • Immediately Self-Restores After Each Surge

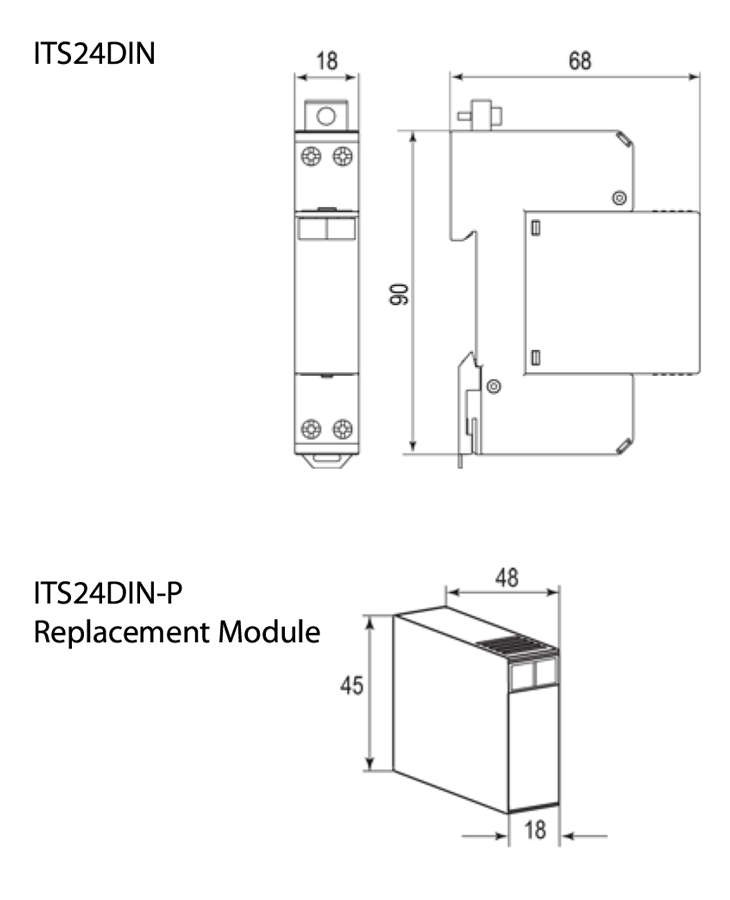

Dimensions

Click for larger view
