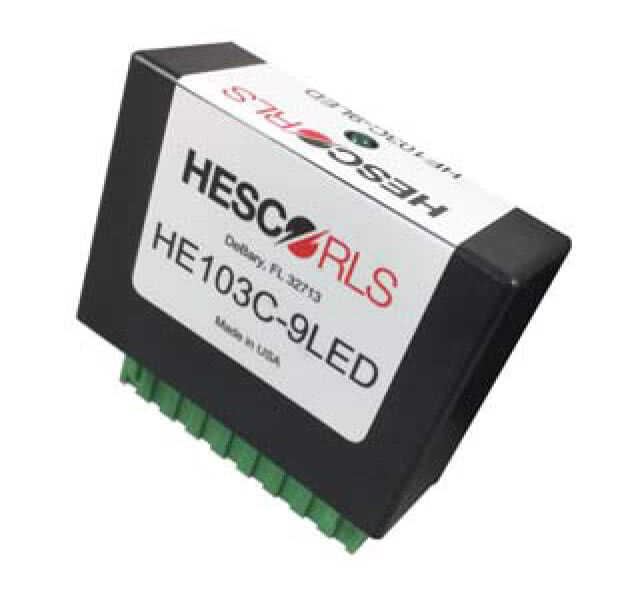

The HE103C-9LED is a fully encapsulated, solid state arrestor, used for medium duty protection of 120VAC load relays. The HE103C-9LED is a stand alone device suitable for use in either exposed or protected environments. With no follow current, the HE103C-9LED can repeatedly dissipate 10KA (8 x 20us) surges and immediately self-restore, ready to protect against the next surge.

The HE103C-9LED is just as reliable as the standard HE103C series, but with an additional feature: LED status indication. The high intensity green LED on the top of the unit lets the technician know that the unit is operating normally. If the LED is not illuminated, it is an indication the unit should be replaced.

Download Specifications Sheet (PDF}


Peak Surge Current (8x20us) 39kA
Surge Life (calculated) 10,000 occurrences @ 100A (8x20us)
Energy 240 Joules
Response Time <5 Ns
Clamp Voltage 340 V @ 1KA
Operating Frequency 47-63 Hz
Temperature -40° to + 85°C
Contnection Type 5.08mm Euroblock (9 Position)
Dimensions 2”H x 1“W x 2”L
The mating connector for the HE103C-9LED is part number: 5300

Ordering Information

Model # Output Circuits # of Positions
HE103C-9LED 6 9


  • Designed for Load Relay Outputs
  • LED Status Indication
  • Fits 9 position, 5.08mm spacing sockets
  • Epoxy Encapsulated
  • Total Solid State Design
  • Recovers Automatically
  • Compact In Size
  • Easy Installation

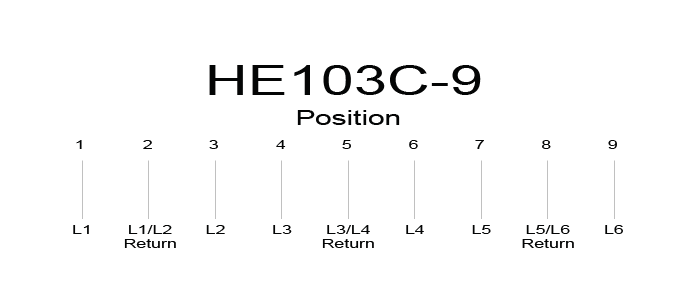

Pin Assignments
