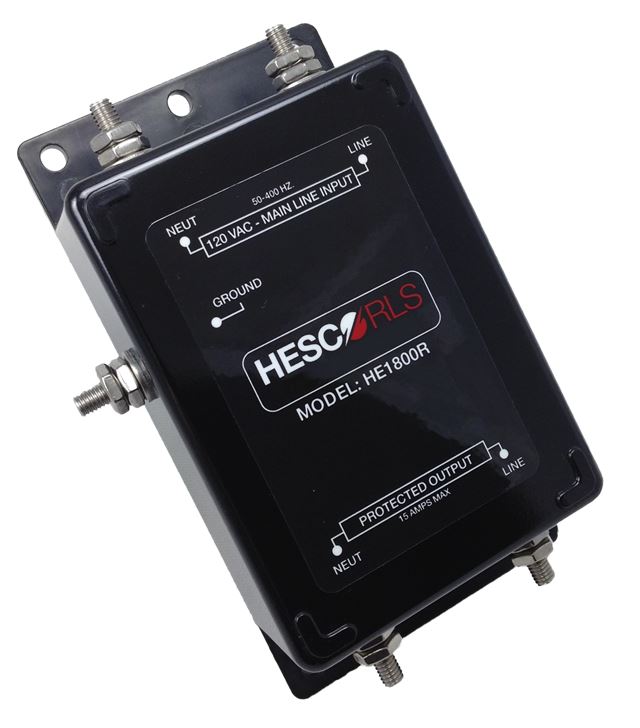

HE1800R AC Surge Protector

For more details call:
1-800-547-4868

Description

The HE1800R has been specifically designed for use type 170 controllers, although it may be used on NEMA controllers. Because of the high quality of this protector, it may be used as a stand-alone device without the use an external line filter. If an external line filter is required, it is recommended that a HESCO/RLS line filter be used.

The HE1800R is a multi-stage, high-energy suppressor that incorporates a sophisticated, inline EMI/RFI filter. The inline filter has been designed to effectively reject random noise and spikes from 10KHz to 25MHz. An inductive network separates the primary and secondary clamp stages, yet work together to offer clamp voltages of under 400 volts at 20kA (8x20us).

If random data base memory loss or any other transient interference is effecting the safe operation of one or more of your intersections, the HE1800R surge protector will quickly and effectively eliminate the problem.

Download Specifications Sheet (PDF}

Specifications

Peak Surge Current (8x20us) 24KA
 Life Test  <5% change in clamp voltage after 25 surges of 25KA (8x20uS)
Max Clamp Voltage 395V
Continuous Service Current 15 Amps Max.
Operating Temperature -40 to 85°C
Mounting Plastic Baseplate

*Unit was tested with neutral strapped to the ground terminal.

Spike Test using Berkley Model 3020 Noise Generator:
Input spike voltage 700 volts P-P

Maximum voltage excursion above/below sine wave at allphase angles, 0 to 180 degrees 30 volts

Features

  • Multi-Stage Surge Arrestor
  • Protects Against Lightning And Other Power Surges
  • Clamps Harmful Surges Quickly
  • Completely Weatherproof
  • Immediately Self-Restores After Each Surge
  • Filter Component Meets MIL-STD-220A Insertion Loss Specifications
