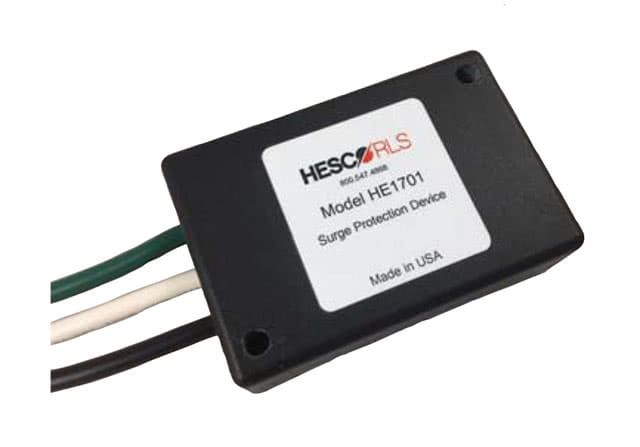

The HE1701 is a fully encapsulated, solid state arrestor used for medium duty protection of a 120 VAC power line. The HE1701 is a stand alone device suitable for use in either exposed or protected environments. With no follow through current, the HE1701 can repeatedly dissipate 40kA (8 x 20uS) surges and immediately self-restore, ready to protect against the next surge.

The HE1701 is specifically designed for use on Type 170 traffic control cabinets.

Download Specifications Sheet (PDF}


Operating Voltage 120 VAC
Clamp Voltage 395 VAC
Peak Surge Current 40 kA per Phase, 53kA Total
Operating Frequency 47-63 Hz
SPD Technology MOV
Modes of Protection L-N and N-G
Connection Type #10 AWG Wire Leads
Operating Temperature -40° to +85° C

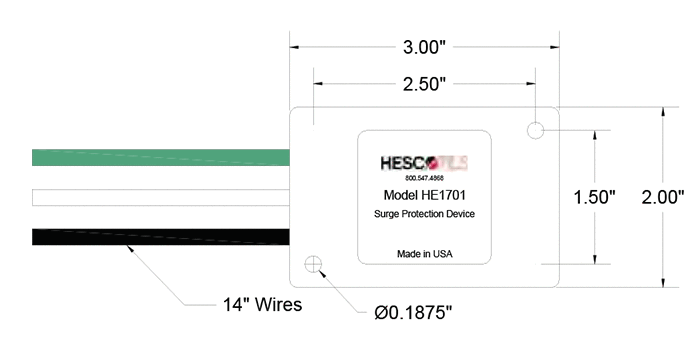

Dimensions 3.0” L x 2.0” W x 0.9” T
Weight 0.5 lbs
Warranty 5 Years


  • 120 VAC Service No Follow Current
  • Nanosecond Response Time
  • 53kA Total Peak Surge Current Capability Automatic Recovery
  • Fully Encapsulated Long Life Compact Size
  • 5 Year Warranty
