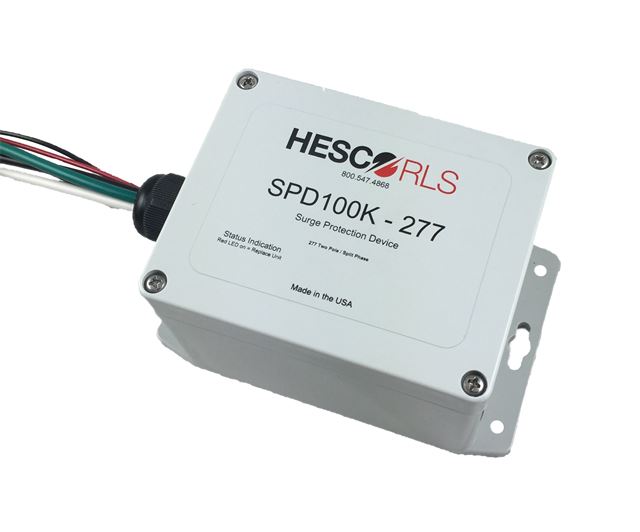

SPD100K-277 AC Surge Protector

For more details call:


A frequent cause of electrical/electronic equipment failure is AC power line surges.  This is especially true in the case of sensitive electronic equipment such as LED lighting systems, CATV systems, traffic controllers, data processing equipment, telecommunication systems, etc.  These power line surges can vary from noise-like transients to spectacular lightning induced surges.  Therefore, the effect on costly equipment can vary from a slow degradation of performance to catastrophic failure.

The SPD100K solid state arrester has been designed to effectively dissipate high energy surges up to 100kA(8x20us). High energy induced surges usually originate on the primary side of the power transformer and are consequently transferred to the secondary. The SPD100K design incorporates UL approved, high energy, thermally fused and protected 50kA large block MOVs. The powerful, parallel-connected SPD100K is available in a variety of electrical configurations. The unit also offers exterior panel LED status indication. The SPD100K comes with a standard 1 year, fully transferable warranty with extended warranty available.

Download Specifications Sheet (PDF}


Total Peak Surge Current 100kA
Operating Voltage 120 VAC, Single Phase
  120/240 Split Phase
Protection Modes  L-N, L-G, L-L, and N-G
SCCR 200kA
VPR 600V
Temperature -30 to 70C
Weight Approx. 1.2 lbs
Dimensions 3.54"W x 5.71"L x 3.15"H
Mounting Mounting Feet
Wire Supply - #10AWG, 24"
 LED Indication - #24AWG, 48"
Warranty1 Year Standard (longer optional)


  • Total Solid State Design
  • Max Surge Current - 100kA (per phase)
  • Visual Indication System
  • NEMA 4X Rated Enclosure
  • ISO 9001:2015 Quality Management System
  • RoHS Compliant
