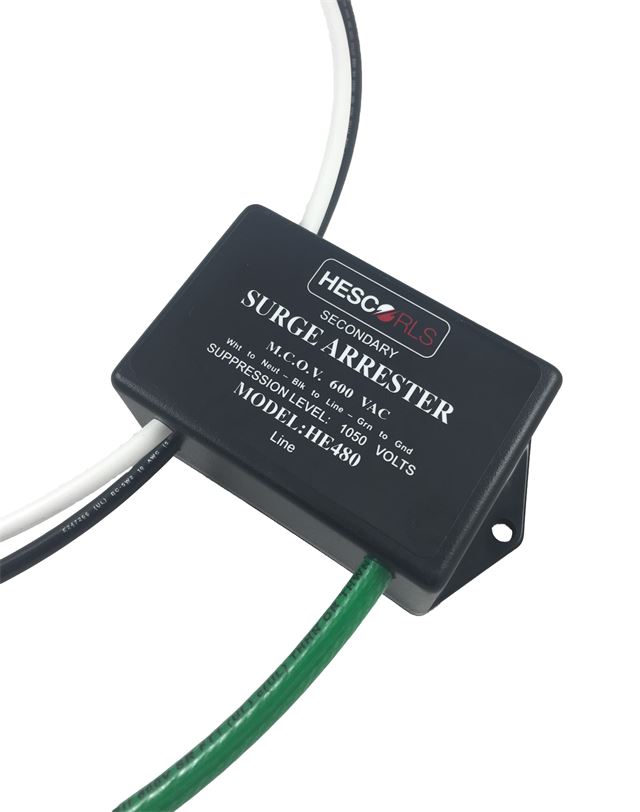

HE480 (Highway Lighting AC Surge Protector)

For more details call:
1-800-547-4868

Description

The HESCO/RLS Industries model HE480 Surge Arrestor has been designed specifically for the highway lighting industry. Utilizing a solid-state design, the HE480 has proven to protect the most sophisticated of highway lighting systems in the industry today.

The HE480 surge arrestor has been designed with the state tax dollars in mind. With this unit, no longer do the individual states have to worry about protecting the investment the state taxpayers have paid for the safety of the drivers in their states on Federal Highways.

Not only does this product protect in the common mode (line to ground), it protects in the normal mode also (line to line). Without this unit, the safety of the drivers in your state would be at risk due to the failure of roadway lighting in critical areas of State highways.

Download Specifications Sheet (PDF}

Specifications

Peak Surge Current (8x20us) 25KA
Response Time <5Ns
Clamp Voltage @ 1ma 700V
Clamp Voltage @ 700A 1060V
Max Allowable Voltage (RMS) 550V
Surge Life (calculated) 40,000 Occurrences @ 700A
Current Drain <100 uAmps
Insulation To Ground 600 Volts
Mounting Lead Supported or Screw-down

Features

  • Multi-Voltage High Mast Lighting
  • Protects Against Lightning and Other Power Surges
  • Clamps Harmful Surges Quickly
  • Completely Weatherproof
  • Immediately Self-Restores After Each Surge
  • Line To Ground & Neutral To Ground Protection
