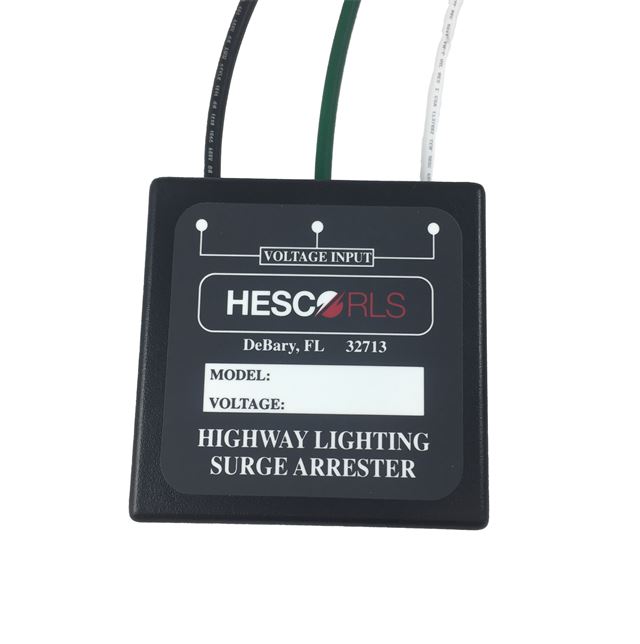

HE1200, 2400, 4800

HE1200, 2400, 4800
Click for larger view

For more details call:
1-800-547-4868

Description

The HE1200, HE2400 and the HE4800 were specifically designed for use and is approved by both the Florida Department of Transportation and the Alabama Highway Department. This line of surge protection offers up to 60KA (8 x 20uS) peak surge current protection for multi-voltage, high-mast lighting applications. Protection schemes provided include both line to ground and neutral to ground protection.

Download Specifications Sheet (PDF}

Specifications

Model: HE1200 HE2400 HE4800
Peak Surge Current (8x20us)45KA 45KA 50KA 65KA
Response Time <5Ns <5Ns <5Ns

Clamp Voltage@

1mA 280V 420V 700V
700A 440V 700V 1060V
Max Allowable Voltage (RMS) 180V 270V 550V
Surge Life (calculated) 40,000 Occur- rences @ 700A 40,000 Occur- rences @ 700A 40,000 Occur- rences @ 700A
Current Drain <100 uAmps <100 uAmps <100 uAmps
Leads No. 10AWG, 18" Long, No. 6AWG, 18" Long No. 10AWG, 18" Long, No. 6AWG, 18" Long No. 10AWG, 18" Long, No. 6AWG, 18" Long
Mounting Lead Supported or Screw-down Lead Supported or Screw-down Lead Supported or Screw-down
Insulation To Ground 600 Volts 600 Volts 600 Volts

Features

  • Multi-Voltage High Mast Lighting
  • Weatherproof
  • Up to 60KA Capability (8x20us)
  • Automatic Recovery
  • 5 Nanosecond Response Time
  • No Follow Current
  • Line to Ground Protection
  • Neutral to Ground Protection
  • Long Life

Pin Assignments

Color Connection
Green No. 6 AWG Ground
Black No. 10 AWG L1 (hot)
Black No. 10 AWG L2 (neut.)
