Channel Nuts

For more details call:
1-800-547-4868

Description

HESCO/RLS channel nuts are designed to provide essential gripping power and ease during installation.  The channel nuts are intended for a medium load framing system typically found in OEM, commercial, and display markets.

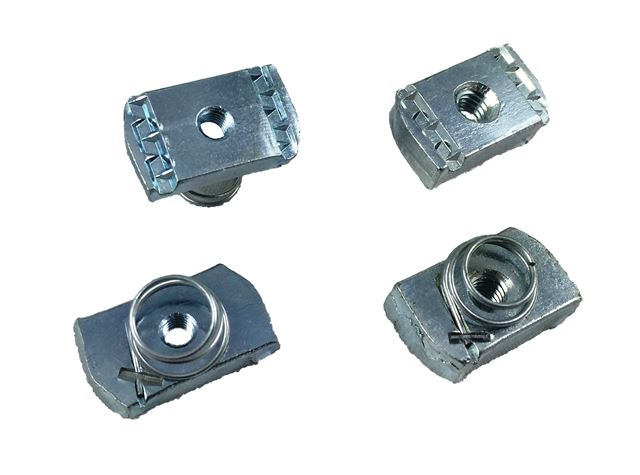

The channel nuts include springs and are offered in two different sizes:  1/4-20 and 10-32.  The units also include serrated grooves on one side to assure proper alignment within the channel's track, and hold them securely in place after being tightened.

Installation

To use HESCO/RLS channel nuts, simply insert the channel nut into the trough of the channel, and twist the nut into position so the groves are aligned with the internal edges of the strut.

Threading and tightening a bolt into the hole causes the teeth located in the grooves to bite into the channel edge, positively locking the nut into place so it can't slip.



Download Specifications Sheet (PDF}

Features

  • 1/4-20 and 10-32 Sizes Available
  • Q235A Steel Material
  • Zinc Plated Finish
  • Serrated Grooves for Correct Alignment
  • Easy Installation

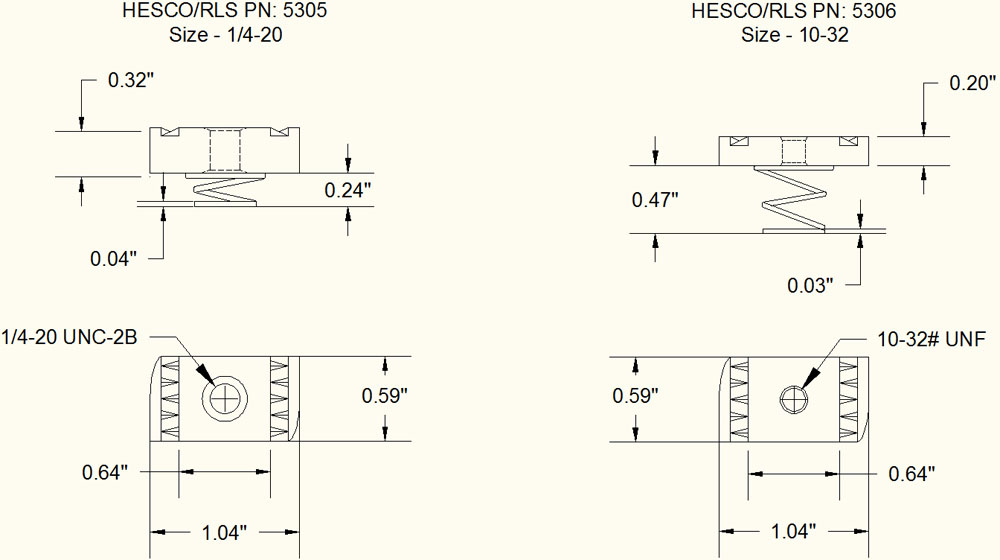

Mounting
