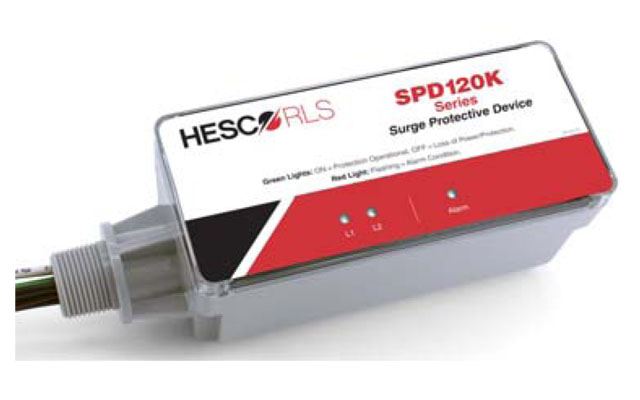

SPD120K

For more details call:
1-800-547-4868

Description

The SPD120K is your best option for protecting incoming AC lines in Intelligent Transportation Systems applications. The unit offers 120kA protection and low voltage protection ratings.

The unit also incorporates the use of warning/failure indicators in addition to remote sensing for monitoring by a central computer. If random data base memory loss or any other transient interference is effecting the safe operation of one or more of your intersections, the SPD120K surge protector will quickly and effectively eliminate the problem.

Download Specifications Sheet (PDF}

Specifications

Maximum Surge Current Rating up to 120kA per Phase
UL Type Designation Type 1 and 2
UL 1449 I-nominal Rating 20kA
UL 1449 Short Circuit Current Rating 200kA
Repetitive Impulse 10,000 hits per mode
Response Time <1 ns
Humidity Range 0-95% non-condensing
Operating Frequency 0-600 Hz
Operating Temperature -25°C to 85°C
Typical Connection 18", #12 AWG (pre-wired) 30 A Breaker
Remote Monitoring Form C Dry Contact, 240V, 5A

Ordering Information

Hesco/RLS PN Sys. Voltage L-N L-G N-G L-L SCCR MCOV
SPD120K-120-1P-1F 120V Single 1∅ 700 700 700 -- 200kA 150
SPD100K-120-2S-1F 240/120 Split∅ 700 700 700 1200 200kA 150

Features

  • 120kA per Phase
  • UL 1449 Listed
  • Stacked MOV Design
  • Low Voltage Protection Ratings
  • 20kA I-nominal Rating
  • 200kA SCCR
  • EMI/RFI Filter
  • Remote Monitoring
  • Audible Alarm
  • Standard 10 Year Warranty

Dimensions

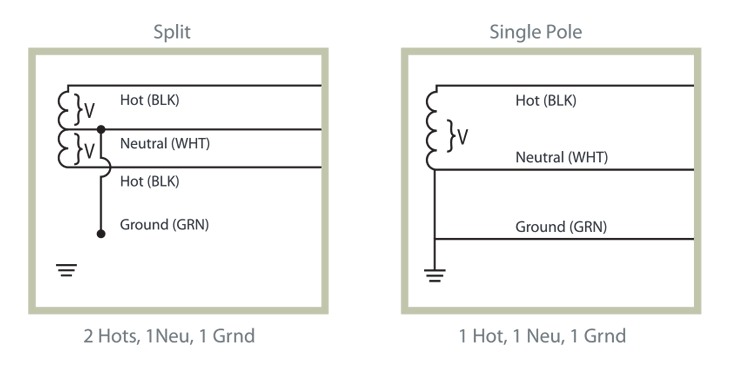

Wiring Configurations
