HE642C

For more details call:
1-800-547-4868

Description

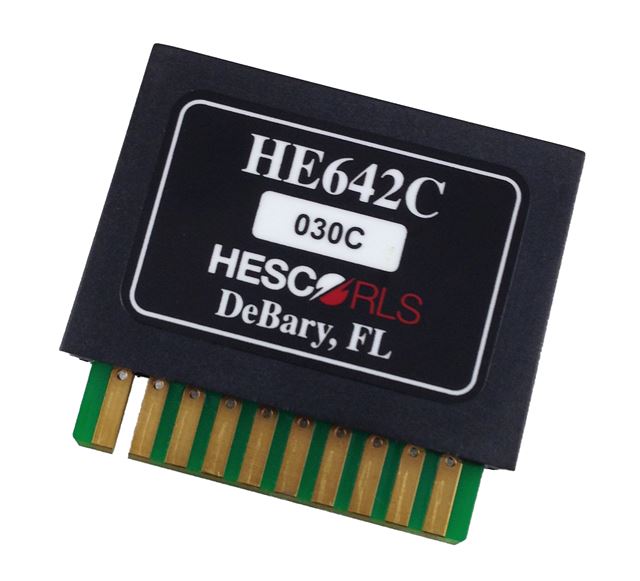

The HE642C protector is a two pair module with gold-plated printed circuit board fingers designed to interface with a Buchanan PCB1B-10A ten-position connector. The mating contacts of the Buchanan connector are gold-plated for extended reliability and non-corrosive mating contact.

The HE642C protector may be utilized as two independent signal pairs or four independent signal lines. Either way, the HE642C protector is of hybrid design and uses the very latest in hybrid suppression technology. An additional protection feature incorporates the use of a positive temperature coefficient component (PTC). This component performs as a ‘resettable fuse’ on each line. The PTC will open upon a severe overload and reset as soon as the transient condition has passed.

The internal design of the HE642C allows the data signals to pass through the protector in a series fashion as long as the protector is engaged with the Buchanan connector. The HE642C requires four input and output pins. Pins 1 and 10 are ground and are electrically connected internally. The data circuits are interrupted when the HE642C is disengaged from the connector. Input and output connections are made easily via the screw-down terminals in the Buchanan connector.

When installing the HE642C protector with the Buchanan connector, do not daisy chain the grounds. Each Buchanan connector must be grounded individually. Keep the ground leads as short as possible to insure the optimum protection.

NOTE: HESCO/RLS PCB1B10A connector is sold separately.

Download Specifications Sheet (PDF}

Specifications

Peak Surge Current
8 x 20uS *10KA
10 x 700uS 500A per line

Lifetime Operations
8 x 20us(2000A) >100 occurrences
10 x 700uS(400A) >100 occurrences

Response Time <1Ns

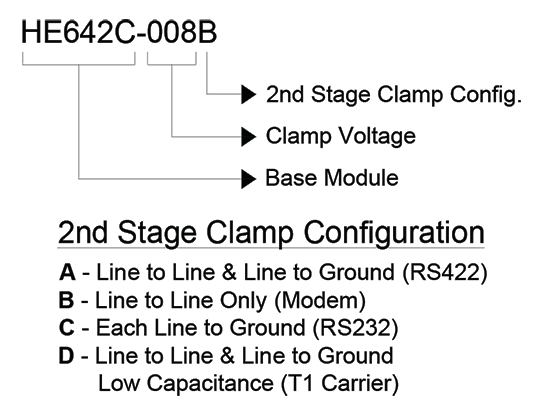

Clamp Voltages 8, 15, 20, 30 or custom
Operating Current 15A
Second Stage Peak Pulse Capability 1500W
Design Hybrid
Series Resistance 4.7 to 15Ω per line
Peak Voltage @ 1ma 212 Volts

Typical Capacitance:
Standard 1500pF
Low Capacitance 50pF
Operating Temperature -40°C to +85°C
Weight 51 grams
*The 8 x 20us waveform is a standard test waveform.

Installation

Features

  • Optimal Protection for Low Voltage Signal Lines
  • Differential and Common Mode Protection
  • Multi-Stage Protection
  • Automatic Recovery
  • Fast Time Response
  • Resettable Fuse (PTC)
  • Selectable Voltages
  • Easily Installed
