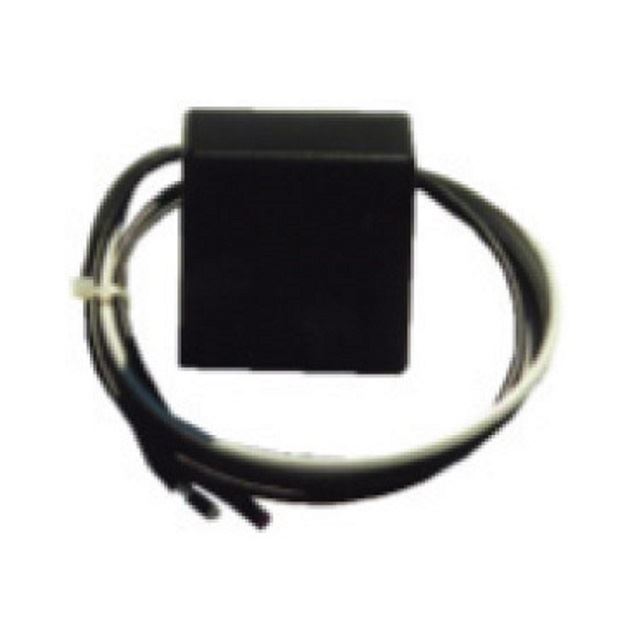

Enforcer Series

For more details call:
1-800-547-4868

Description

The ENFORCER is a solid state, heavy duty lightning arrestor and transient voltage surge suppressor that is installed at the indoor service entrance panel or on the weather head where the utility permits. When a destructive lightning surge enters the wiring, the ENFORCER clamps the voltage to a safe level in nanoseconds, absorbing the potentially dangerous pulse and dissipating it harmlessly to ground. Having protected your valuable electronic circuitry, the ENFORCER immediately self-restores, ready to protect against the next surge.

The ENFORCER also protects against power switching surges and induced AC surges that are proven to be extremely destructive to computer and other electronic and electrical equipment. It is far superior to air-gap devices which typically allows over 2000 volts to pass through and damage electronic equipment.

The ENFORCER is completely encapsulated, weatherproof and built to withstand great impact without impairing its' ability to protect against surges.

The ENFORCER operates on standard AC power, single-phase 120/240 volt (ENFORCER1) or 240/480 volt (ENFORCER IV). It can also protect three phase circuits where the line to ground 60Hz voltage does not exceed 175 volts (ENFORCER II) or 600 Volts

Download Specifications Sheet (PDF}

Specifications

Model: Enforcer I Enforcer II Enforcer III
Peak Surge Current (8x20us) 20KA 20KA 20KA
Response Time <5Ns <5Ns <5Ns
Joules Per Leg 300 300 350
Total 600 900 1050
MCOV 175VAC 175VAC 600VAC
Dimensions (Inches) 2 x 2 x 1.5 2 x 2 x 1.5 2 x 2 x 1.5
Electrical Configuration 120/240 3W, 1Ph 120/208Y 4W, 3Ph 277/480 4W, 3Ph
Clamp Voltage@
1KA (8x20us) 385V 385V 1200V
5KA (8x20us) 600V 600V 1500V
10KA (8X20us) 825V 825V 1800V
20KA (8x20us) 990V 990V 2200V
Current Drain <100uA <100uA <100uA
Insulation To Ground 10KVAC 10KVAC 10KAVAC

Features

  • Whole House Surge Protection
  • Clamps Harmful Transient Voltage Surges
  • Completely Weatherproof
  • Immediately Self-Restores After Each Surge
  • Mounts Directly On Service Panel Or Weather head

Applications

For Industry: Computers, testing laboratory, motors, metering, security, fire alarm & communication equipment.

In the Home: Computers, fire/burglar alarm systems, stereo equipment, all major appliances and any other AC powered items.

On the Farm: Electric motors, submersible pumps, milking machines, incubators, freezers, refrigerators and other AC equipment.
