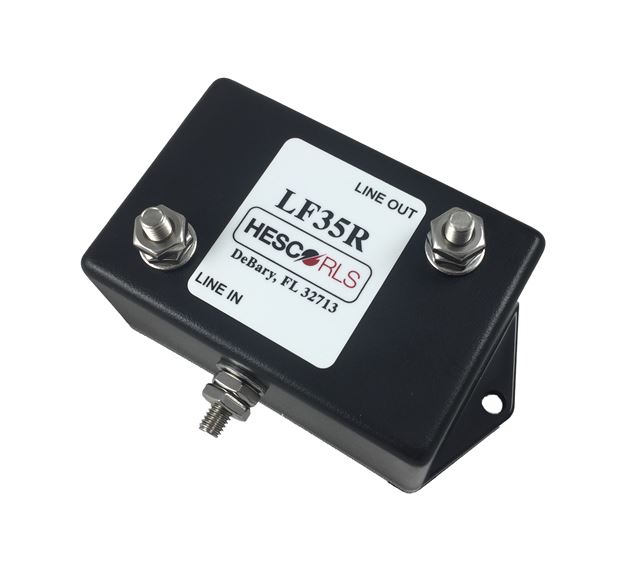

LF35R

For more details call:
1-800-547-4868

Description

The LF35 will protect equipment from malfunctions due to conducted interference coming into the equipment from line, especially line to ground (common mode) noise and transients. HESCO/RLS line filters are designed to provide the required noise suppression to allow most equipment to meet FCC specifications for conducted emissions. HESCO/RLS line filters are a cost effective solution for equipment that is environmentally subjected to the damaging effects of transient noise and other interference that may result in unnecessary memory loss or down time of a traffic controller.

Trouble intersections may need no more than a reliable line filter to correct this potentially dangerous situation. RFI emissions are propagated in two manners, radiated and conducted. Most designers must be concerned with both in order to design their equipment to operate properly in a particular environment and often in the presence of significant levels of RFI. The excellent characteristics of HESCO/RLS line filter will provide the attenuation of RFI interference you will need to achieve a safe operational environment for your equipment.

Download Specifications Sheet (PDF}

Specifications

Rated Voltage (RMS) 120
Rated Current Single Line 30 AMPS
Frequency 50/60 HZ
Leakage Current @ 120 VAC (L-G) .25ma

Insertion Loss (db) @
.2MHz 70
.3MHz 74
.6MHz 80
1MHz 77
10MHz 76
20MHz 76
40MHz 66
75MHz 63
Hipot (1 min., VDC) 1500
Mounting Mounting Tabs

Features

  • Eliminates Noise Transients
  • Weatherproof
  • 35 AMP Capability
  • Mounts Easily
  • Cost Effective

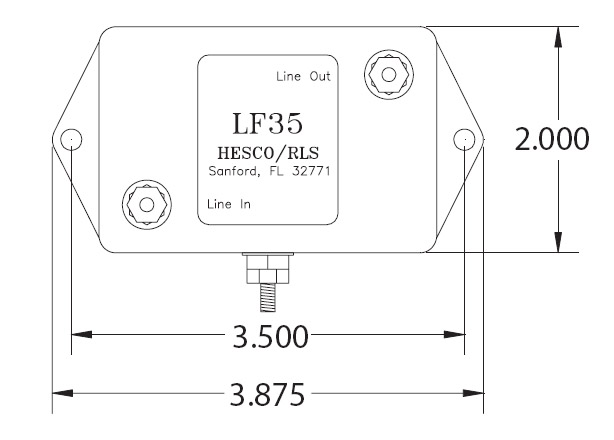

Dimensions
